check_mrtgtraf: Unable to open MRTG log file

[sophisticated]

Hi!

I have problem with MRTG. It works correctly wen i come in 192.168.3.22/mrtg It shows me Traffic Analysis of my firewall but in Nagios i have a unknown error: check_mrtgtraf: Unable to open MRTG log file

Code: Select all

# Monitor bandwidth via MRTG logs

define service {

    use                     generic-service                     ; Inherit values from a template
    host_name               firewall
    service_description     Port 1 Bandwidth Usage
    check_command           check_mrtgtraf!/var/www/mrtg/192.168.3.6_40.log!AVG!1000000,1000000!5000000,5000000!10
}

[cdienger]

Does /var/www/mrtg/192.168.3.6_40.log exist? What permissions are set on it?

[sophisticated]

Does /var/www/mrtg/192.168.3.6_40.log exist? What permissions are set on it?

Yes.

EDIT:

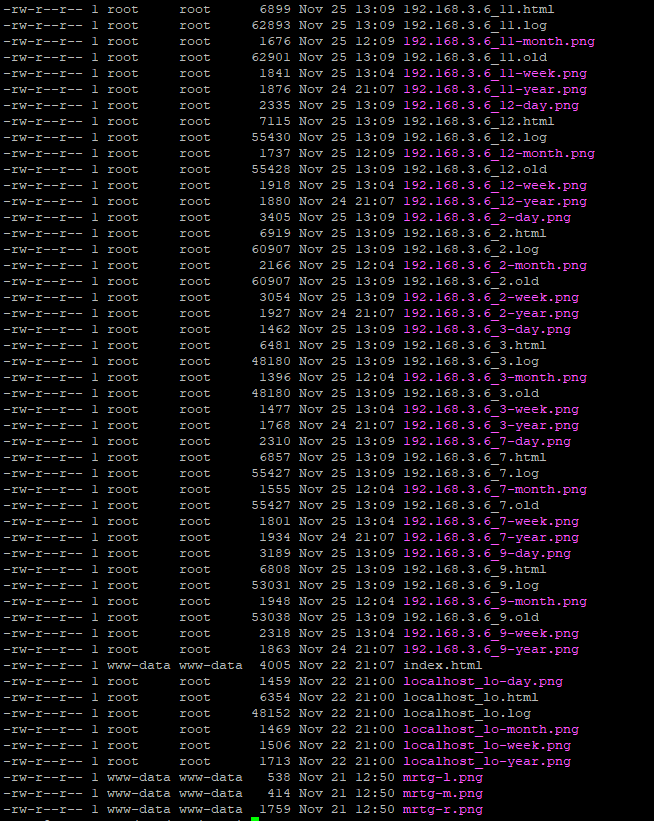

Oh, actually 192.168.3.6_40.log do not exist, i changed it to 192.168.3.6_10.log. Now is "MRTG data has expired (2641 minutes old)"
What should the number be in X 192.168.3.6_X.log?

[cdienger]

You may want to try using the rrdtool logformat instead to store the data and avoid having logs rotate/rollover:

https://oss.oetiker.ch/mrtg/doc/mrtg-rrd.en.html

[sophisticated]

Ok. When i try to install it shows me:


rrdtool is already the newest version (1.7.0-1build1).
librrds-perl is already the newest version (1.7.0-1build1).

But. Directory /usr/local/rrdtool/bin/ do not exist

[cdienger]

Run "which rrdtool" or "locate "rrdtool" to help find it. That said, if it's already installed I think all you need to do is modify the mrtg to look like:

Code: Select all

HtmlDir: /var/www/mrtg
ImageDir: /var/www/mrtg
LogFormat: rrdtool
LogDir: /var/lib/mrtg
ThreshDir: /var/lib/mrtg
WorkDir: /var/lib/mrtg
Forks: 4
EnableSnmpV3: yes

Include: conf.d/*.cfg

EnableSNMPv3: yes

And them modify the check_command to point at the rrd file instead of the .log file.

[sophisticated]

Do I have to add it to mrtg.cfg? Why my file is called mrtg.cfg.orig ?

[cdienger]

I don't know where else it would be changed, but mrtg.cfg(or which everconfig file your system is using) is the usual place it is defined.

The mrtg on my system runs every 5 minutes per a cronjob and defines the mrtg.cfg file to use:

Code: Select all

 */5 * * * * root LANG=C LC_ALL=C /usr/bin/mrtg /etc/mrtg/mrtg.cfg --lock-file /var/lib/mrtg/mrtg.lock --confcache-file /var/lib/mrtg/mrtg.ok --user=nagios --group=nagios
