New map issue with more than one parents host

[jose_a_guardia]

Hi!

I've this issue with new map in latest stable Nagios version.

I've configured a host like this:

Code: Select all

define host{
use						host-no-critico,host-pnp
host_name				helpdesk_svrsistemas
alias					        App helpdesk en svrsistemas
parents					apache_svrsistemas,mysql_svrsistemas
icon_image 				website256.png
statusmap_image 		        website.gd2
address					192.168.1.222
}

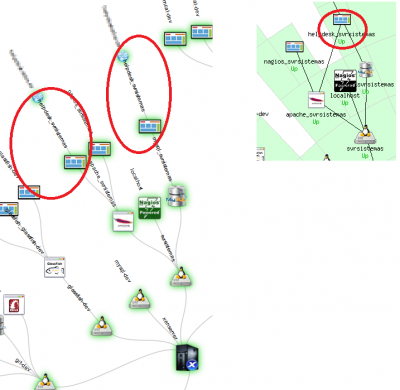

In legacy map, it is shown as I think that maybe:



However, in new map, Nagios lost the second parent




How can I solve this, please?

Regards.

[hsmith]

Can we perhaps get a larger screenshot of the second one? You can always submit enhancement requests to https://github.com/NagiosEnterprises/nagioscore.

It seems to be behaving on mine.

[jose_a_guardia]

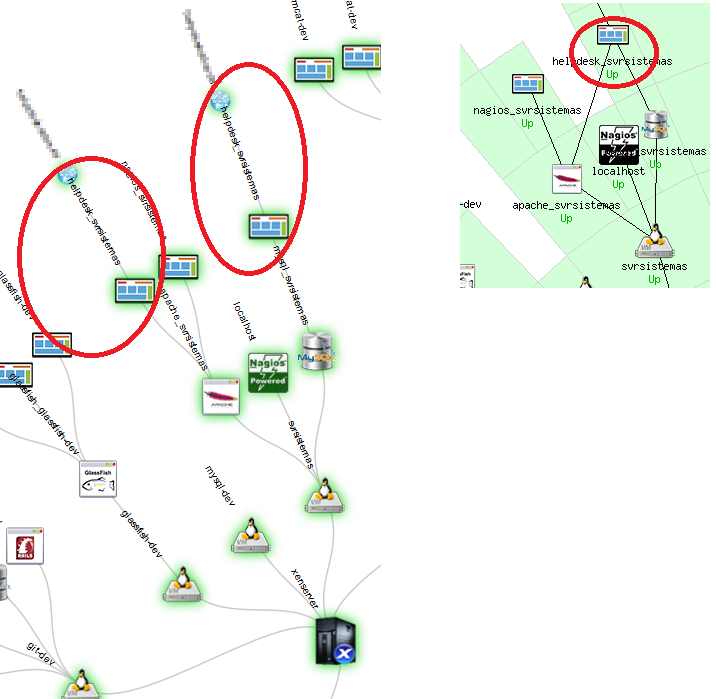

This is all the tree in new map:



Thanks!

[rkennedy]

Can you tell us what the issue is with it now? I think I see what you're talking about, but I'd like some clarification.

Is it because they split up now versus merging into one as seen with the red circles?
