Nagios core 4.1.1 - map questions

[nag75]

Hi,

I have beginner question about Map.
1) Its it possible to set default map Layout Circular Markup and default Root Node?
I set in cgi.cfg defaul_statusmap_layout=5 but the default map is always Circular Ballon

2) In circular markup map:
- If all services are OK host show green on map.
- If service ping are in critical status (3/3 (HARD state)) then host show red on map
- but if service ping are OK and another service (Disk space in state Critical) the host on map are green
Its possible to set: if any service going to warning or critical state that host on map change colour to yellow (Warning) or red (Critical)?

Thx for helping ....

Host definition:

Code: Select all

define host {
        use                     windows_host
        parents                 pc0
        host_name               pc1
        alias                   pc1
        address                 192.168.0.1
        hostgroups              servers
}

define service{
        use                     generic-service
        host_name               pc1
        service_description     PING
        check_command           check_ping!200.0,20%!600.0,60%
        normal_check_interval   1
        retry_check_interval    3
}

define service {
        use                     windows_service
        host_name               pc1
        service_description     CPU Utilisation
        check_command           check_win_cpu!80!90
}

define service {
        use                     windows_service
        host_name               pc1
        service_description     Disk Space - All
        check_command           check_win_disk!.!80!90!-o 1 -3 1
}

service template:

Code: Select all

define service{
        name                            windows_service         ; The 'name' of this service template
        active_checks_enabled           1                       ; Active service checks are enabled
        passive_checks_enabled          1                       ; Passive service checks are enabled/accepted
        parallelize_check               1                       ; Active service checks should be parallelized (disabling this can lead to major performance problems)
        obsess_over_service             1                       ; We should obsess over this service (if necessary)
        check_freshness                 0                       ; Default is to NOT check service 'freshness'
        notifications_enabled           1                       ; Service notifications are enabled
        event_handler_enabled           1                       ; Service event handler is enabled
        flap_detection_enabled          1                       ; Flap detection is enabled
        process_perf_data               1                       ; Process performance data
        retain_status_information       1                       ; Retain status information across program restarts
        retain_nonstatus_information    1                       ; Retain non-status information across program restarts
        is_volatile                     0                       ; The service is not volatile
        check_period                    24x7                    ; The service can be checked at any time of the day
        max_check_attempts              3                       ; Re-check the service up to 3 times in order to determine its final (hard) state
        normal_check_interval           10                      ; Check the service every 10 minutes under normal conditions
        retry_check_interval            2                       ; Re-check the service every two minutes until a hard state can be determined
        contact_groups                  email                   ; Notifications get sent out to everyone in the 'admins' group
        notification_options            w,u,c,r                 ; Send notifications about warning, unknown, critical, and recovery events
        notification_interval           60                      ; Re-notify about service problems every hour
        notification_period             24x7                    ; Notifications can be sent out at any time
         register                        0                      ; DONT REGISTER THIS DEFINITION - ITS NOT A REAL SERVICE, JUST A TEMPLATE!
        }

[rkennedy]

It looks like the first issue with the default_statusmap_layout=5 was a bug, but recently fixed. See this link for more information - https://github.com/NagiosEnterprises/na ... /issues/37

For the second part of this, can you provide a screenshot as reference for us to take a look at?

[nag75]

Hi,

Thx for answer.

I changed me config only to default nagios config to use.
I downloaded from git hub version Version 4.1.2-Pre1
Build it but i have same behavior. defaul_statusmap_layout=5 but the default map is always Circular Ballon

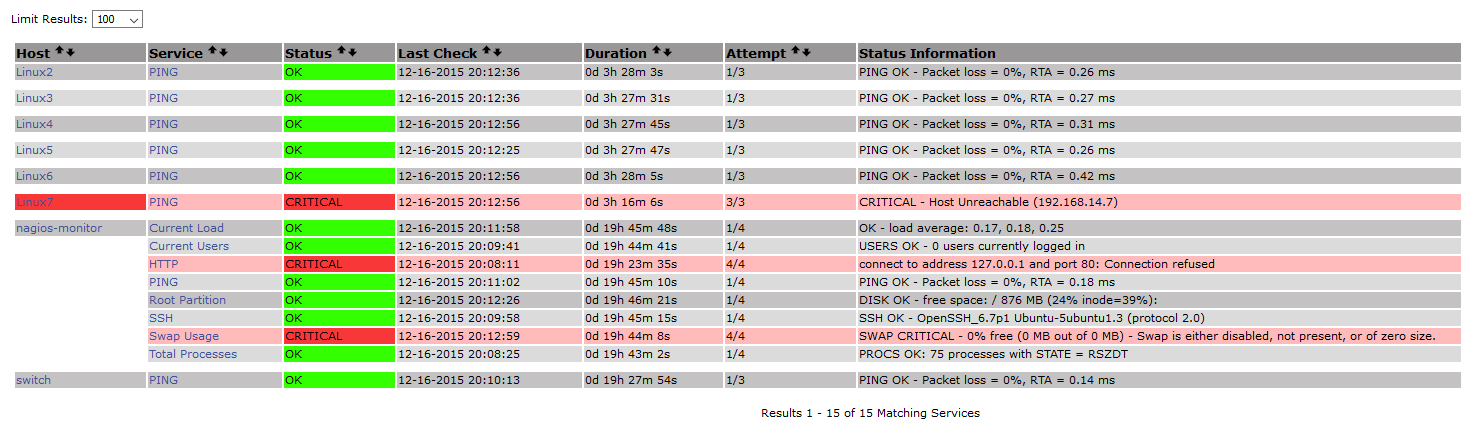

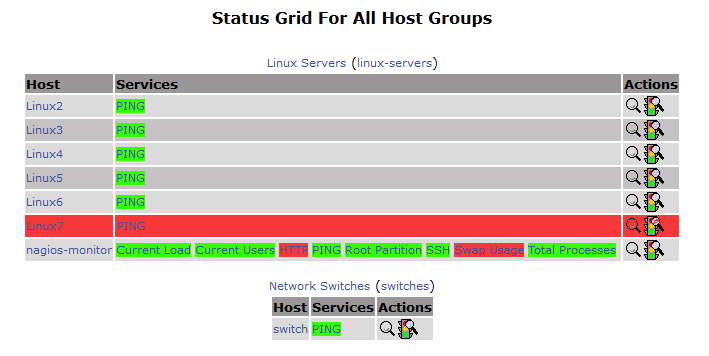

Hosts status grid

Services status

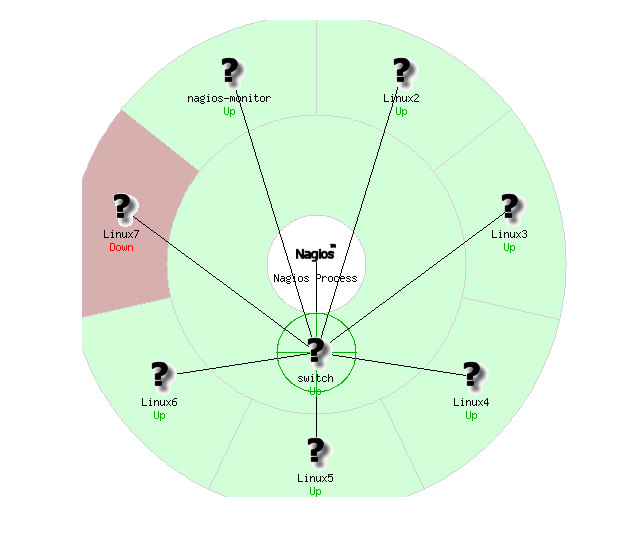

Map,

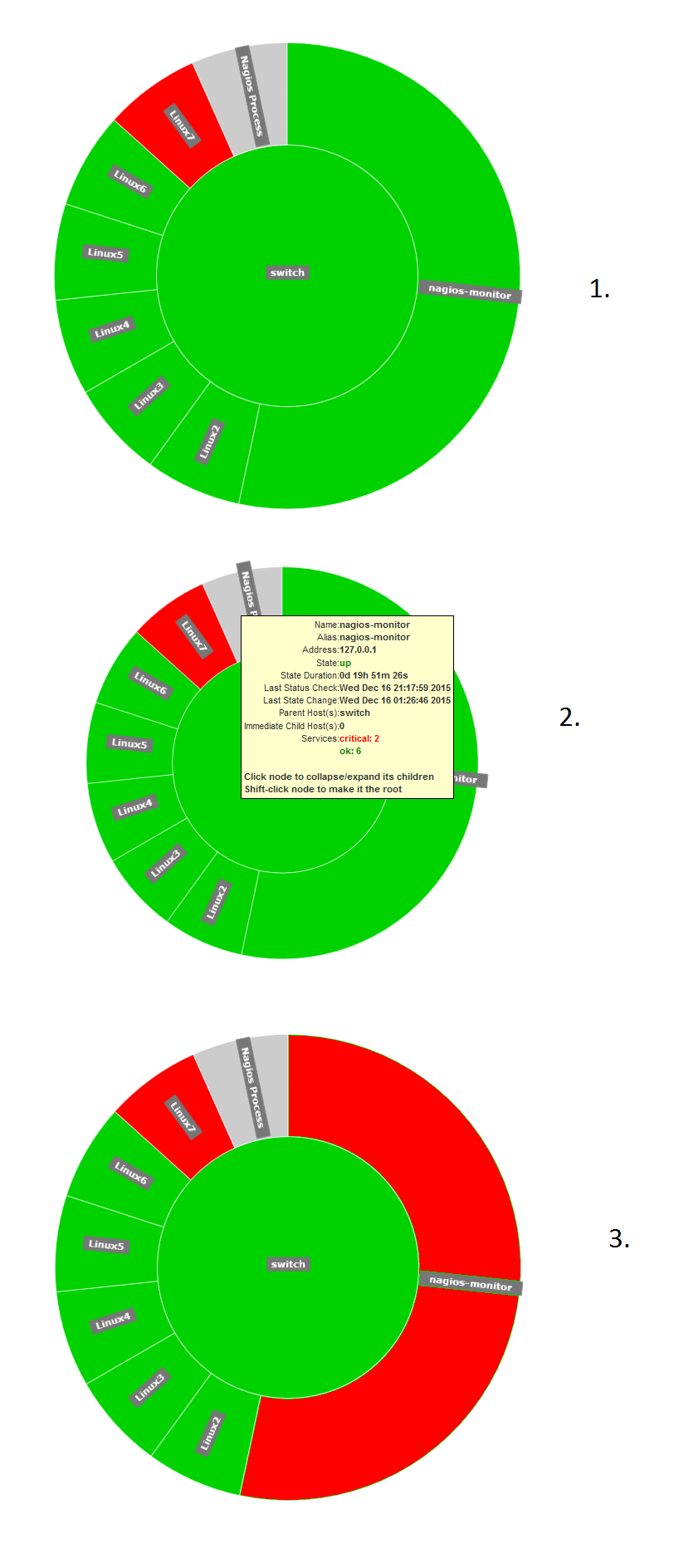

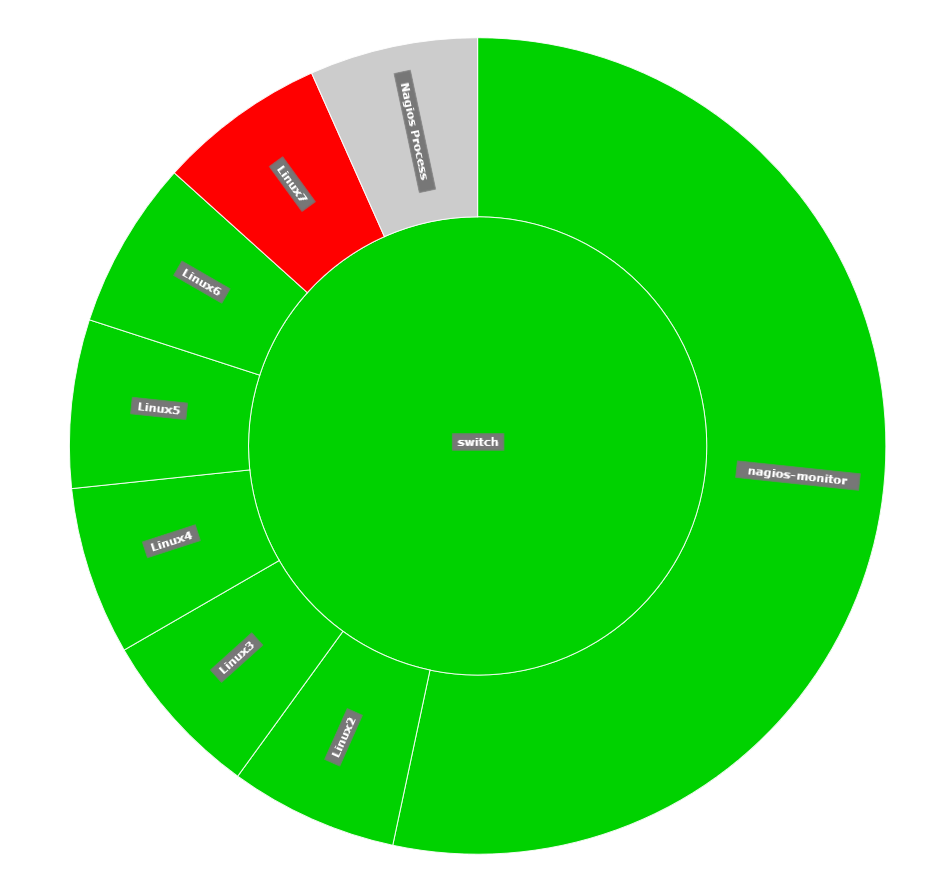

1. status map
2. status map with information about host 2 services are in critical but host are green
3. i change look of picture to show me question. 2 services are in critical host show red or services are into warning host show yellow

Thx for helping ....

[rkennedy]

I noticed in both of your posts that you said 'defaul_statusmap_layout=5', and it's missing a t. It should be -

Code: Select all

default_statusmap_layout=5

Did that help?

[nag75]

Hi,

thx, no its same:

Code: Select all

/usr/local/nagios/etc# cat cgi.cfg
#################################################################
#
# CGI.CFG - Sample CGI Configuration File for Nagios 4.1.2-Pre1
#
#
#################################################################
# MAIN CONFIGURATION FILE
# This tells the CGIs where to find your main configuration file.
# The CGIs will read the main and host config files for any other
# data they might need.

main_config_file=/usr/local/nagios/etc/nagios.cfg

# PHYSICAL HTML PATH
# This is the path where the HTML files for Nagios reside.  This
# value is used to locate the logo images needed by the statusmap
# and statuswrl CGIs.

physical_html_path=/usr/local/nagios/share

# URL HTML PATH
# This is the path portion of the URL that corresponds to the
# physical location of the Nagios HTML files (as defined above).
# This value is used by the CGIs to locate the online documentation
# and graphics.  If you access the Nagios pages with an URL like
# http://www.myhost.com/nagios, this value should be '/nagios'
# (without the quotes).

url_html_path=/nagios

# CONTEXT-SENSITIVE HELP
# This option determines whether or not a context-sensitive
# help icon will be displayed for most of the CGIs.
# Values: 0 = disables context-sensitive help
#         1 = enables context-sensitive help

show_context_help=0

# PENDING STATES OPTION
# This option determines what states should be displayed in the web
# interface for hosts/services that have not yet been checked.
# Values: 0 = leave hosts/services that have not been check yet in their original state
#         1 = mark hosts/services that have not been checked yet as PENDING

use_pending_states=1

# AUTHENTICATION USAGE
# This option controls whether or not the CGIs will use any
# authentication when displaying host and service information, as
# well as committing commands to Nagios for processing.
#
# Read the HTML documentation to learn how the authorization works!
#
# NOTE: It is a really *bad* idea to disable authorization, unless
# you plan on removing the command CGI (cmd.cgi)!  Failure to do
# so will leave you wide open to kiddies messing with Nagios and
# possibly hitting you with a denial of service attack by filling up
# your drive by continuously writing to your command file!
#
# Setting this value to 0 will cause the CGIs to *not* use
# authentication (bad idea), while any other value will make them
# use the authentication functions (the default).

use_authentication=1

# x509 CERT AUTHENTICATION
# When enabled, this option allows you to use x509 cert (SSL)
# authentication in the CGIs.  This is an advanced option and should
# not be enabled unless you know what you're doing.

use_ssl_authentication=0

# DEFAULT USER
# Setting this variable will define a default user name that can
# access pages without authentication.  This allows people within a
# secure domain (i.e., behind a firewall) to see the current status
# without authenticating.  You may want to use this to avoid basic
# authentication if you are not using a secure server since basic
# authentication transmits passwords in the clear.
#
# Important:  Do not define a default username unless you are
# running a secure web server and are sure that everyone who has
# access to the CGIs has been authenticated in some manner!  If you
# define this variable, anyone who has not authenticated to the web
# server will inherit all rights you assign to this user!

#default_user_name=guest

# SYSTEM/PROCESS INFORMATION ACCESS
# This option is a comma-delimited list of all usernames that
# have access to viewing the Nagios process information as
# provided by the Extended Information CGI (extinfo.cgi).  By
# default, *no one* has access to this unless you choose to
# not use authorization.  You may use an asterisk (*) to
# authorize any user who has authenticated to the web server.

authorized_for_system_information=nagiosadmin

# CONFIGURATION INFORMATION ACCESS
# This option is a comma-delimited list of all usernames that
# can view ALL configuration information (hosts, commands, etc).
# By default, users can only view configuration information
# for the hosts and services they are contacts for. You may use
# an asterisk (*) to authorize any user who has authenticated
# to the web server.

authorized_for_configuration_information=nagiosadmin

# SYSTEM/PROCESS COMMAND ACCESS
# This option is a comma-delimited list of all usernames that
# can issue shutdown and restart commands to Nagios via the
# command CGI (cmd.cgi).  Users in this list can also change
# the program mode to active or standby. By default, *no one*
# has access to this unless you choose to not use authorization.
# You may use an asterisk (*) to authorize any user who has
# authenticated to the web server.

authorized_for_system_commands=nagiosadmin

# GLOBAL HOST/SERVICE VIEW ACCESS
# These two options are comma-delimited lists of all usernames that
# can view information for all hosts and services that are being
# monitored.  By default, users can only view information
# for hosts or services that they are contacts for (unless you
# you choose to not use authorization). You may use an asterisk (*)
# to authorize any user who has authenticated to the web server.

authorized_for_all_services=nagiosadmin
authorized_for_all_hosts=nagiosadmin

# GLOBAL HOST/SERVICE COMMAND ACCESS
# These two options are comma-delimited lists of all usernames that
# can issue host or service related commands via the command
# CGI (cmd.cgi) for all hosts and services that are being monitored.
# By default, users can only issue commands for hosts or services
# that they are contacts for (unless you you choose to not use
# authorization).  You may use an asterisk (*) to authorize any
# user who has authenticated to the web server.

authorized_for_all_service_commands=nagiosadmin
authorized_for_all_host_commands=nagiosadmin

# READ-ONLY USERS
# A comma-delimited list of usernames that have read-only rights in
# the CGIs.  This will block any service or host commands normally shown
# on the extinfo CGI pages.  It will also block comments from being shown
# to read-only users.

#authorized_for_read_only=user1,user2

# STATUSMAP BACKGROUND IMAGE
# This option allows you to specify an image to be used as a
# background in the statusmap CGI.  It is assumed that the image
# resides in the HTML images path (i.e. /usr/local/nagios/share/images).
# This path is automatically determined by appending "/images"
# to the path specified by the 'physical_html_path' directive.
# Note:  The image file may be in GIF, PNG, JPEG, or GD2 format.
# However, I recommend that you convert your image to GD2 format
# (uncompressed), as this will cause less CPU load when the CGI
# generates the image.

#statusmap_background_image=smbackground.gd2

# STATUSMAP TRANSPARENCY INDEX COLOR
# These options set the r,g,b values of the background color used the statusmap CGI,
# so normal browsers that can't show real png transparency set the desired color as
# a background color instead (to make it look pretty).
# Defaults to white: (R,G,B) = (255,255,255).

#color_transparency_index_r=255
#color_transparency_index_g=255
#color_transparency_index_b=255

# DEFAULT STATUSMAP LAYOUT METHOD
# This option allows you to specify the default layout method
# the statusmap CGI should use for drawing hosts.  If you do
# not use this option, the default for the legacy map is to use
# user-defined coordinates and the default for the new map is "6"
# (Circular Balloon).
# Valid options for the new map are as follows:
#       0 = User-defined coordinates
#       1 = Depth Layers (Horizontal)
#       2 = Collapsed tree (Horizontal)
#       3 = Balanced tree (Horizontal)
#       4 = DON'T USE
#       5 = Circular Markup
#       6 = Circular Balloon
#       7 = Balanced tree (Vertical)
#       8 = Collapsed tree (Vertical)
#       9 = Depth Layers (Vertical)
#       10 = Force Map

default_statusmap_layout=5

# DEFAULT STATUSWRL LAYOUT METHOD
# This option allows you to specify the default layout method
# the statuswrl (VRML) CGI should use for drawing hosts.  If you
# do not use this option, the default is to use user-defined
# coordinates.  Valid options are as follows:
#       0 = User-defined coordinates
#       2 = Collapsed tree
#       3 = Balanced tree
#       4 = Circular

default_statuswrl_layout=4

# STATUSWRL INCLUDE
# This option allows you to include your own objects in the
# generated VRML world.  It is assumed that the file
# resides in the HTML path (i.e. /usr/local/nagios/share).

#statuswrl_include=myworld.wrl

# PING SYNTAX
# This option determines what syntax should be used when
# attempting to ping a host from the WAP interface (using
# the statuswml CGI.  You must include the full path to
# the ping binary, along with all required options.  The
# $HOSTADDRESS$ macro is substituted with the address of
# the host before the command is executed.
# Please note that the syntax for the ping binary is
# notorious for being different on virtually ever *NIX
# OS and distribution, so you may have to tweak this to
# work on your system.

ping_syntax=/bin/ping -n -U -c 5 $HOSTADDRESS$

# REFRESH RATE
# This option allows you to specify the refresh rate in seconds
# of various CGIs (status, statusmap, extinfo, and outages).

refresh_rate=90

# DEFAULT PAGE LIMIT
# This option allows you to specify the default number of results
# displayed on the status.cgi.  This number can be adjusted from
# within the UI after the initial page load. Setting this to 0
# will show all results.

result_limit=100

# ESCAPE HTML TAGS
# This option determines whether HTML tags in host and service
# status output is escaped in the web interface.  If enabled,
# your plugin output will not be able to contain clickable links.

escape_html_tags=1

# SOUND OPTIONS
# These options allow you to specify an optional audio file
# that should be played in your browser window when there are
# problems on the network.  The audio files are used only in
# the status CGI.  Only the sound for the most critical problem
# will be played.  Order of importance (higher to lower) is as
# follows: unreachable hosts, down hosts, critical services,
# warning services, and unknown services. If there are no
# visible problems, the sound file optionally specified by
# 'normal_sound' variable will be played.
#
#
# <varname>=<sound_file>
#
# Note: All audio files must be placed in the /media subdirectory
# under the HTML path (i.e. /usr/local/nagios/share/media/).

#host_unreachable_sound=hostdown.wav
#host_down_sound=hostdown.wav
#service_critical_sound=critical.wav
#service_warning_sound=warning.wav
#service_unknown_sound=warning.wav
#normal_sound=noproblem.wav

# URL TARGET FRAMES
# These options determine the target frames in which notes and
# action URLs will open.

action_url_target=_blank
notes_url_target=_blank

# LOCK AUTHOR NAMES OPTION
# This option determines whether users can change the author name
# when submitting comments, scheduling downtime.  If disabled, the
# author names will be locked into their contact name, as defined in Nagios.
# Values: 0 = allow editing author names
#         1 = lock author names (disallow editing)

lock_author_names=1

# SPLUNK INTEGRATION OPTIONS
# These options allow you to enable integration with Splunk
# in the web interface.  If enabled, you'll be presented with
# "Splunk It" links in various places in the CGIs (log file,
# alert history, host/service detail, etc).  Useful if you're
# trying to research why a particular problem occurred.
# For more information on Splunk, visit http://www.splunk.com/

# This option determines whether the Splunk integration is enabled
# Values: 0 = disable Splunk integration
#         1 = enable Splunk integration

#enable_splunk_integration=1

# This option should be the URL used to access your instance of Splunk

#splunk_url=http://127.0.0.1:8000/

# NAVIGATION BAR SEARCH OPTIONS
# The following options allow to configure the navbar search. Default
# is to search for hostnames. With enabled navbar_search_for_addresses,
# the navbar search queries IP addresses as well. It's also possible
# to enable search for aliases by setting navbar_search_for_aliases=1.

navbar_search_for_addresses=1
navbar_search_for_aliases=1

# DEFAULTS FOR CHECKBOXES FOR ACKNOWLEDGEMENTS
# Enabling ack_no_sticky will default the "Sticky Acknowledgement" to
# be unchecked.
# Enabling ack_no_send will default the "Send Notification" to
# be unchecked.

#ack_no_sticky=0
#ack_no_send=0

[rkennedy]

Can you take a look at your Legacy map? I just tested this on my system and it looks like that option is changing the graph on the Legacy map.
http://nagiosserver/nagios/cgi-bin/stat ... i?host=all

[nag75]

Hi,

Yes you have right this change only legacy map and not map defaults settings.

[rkennedy]

Looking good! Is that the display you were looking for then?

[nag75]

Hi,

thx.
it looks nice but this is nicer (map entries on left side).

Can I use both maps.

but - the two maps shows that the "nagios-monitor" has an error.
host "nagios-monitor" have 2 error but on the both map his green and not red

[rkennedy]

Yes, you can use both. I believe the reason it's not showing down is because this map is based off of host checks. Does "nagios-monitor" still have a green host check result?
