Nagvis: display of a service in graphic

[Athanor027]

Hello,

With Nagvis, when I slide the timekeeper of the mouse on an icon Service (Ping for example), I obtain the display by default from lines of the service Ping (Host Name - Name - State service - Output)

I wanted to know if I could have (not the service line), but directly the graph pnp4nagios of the traffic ping) without clicking.

I thank you for it in advance.

Best Regards,

[rkennedy]

I'm a bit confused what you're looking for, could you show us a screenshot as an example?

[Athanor027]

Hello,

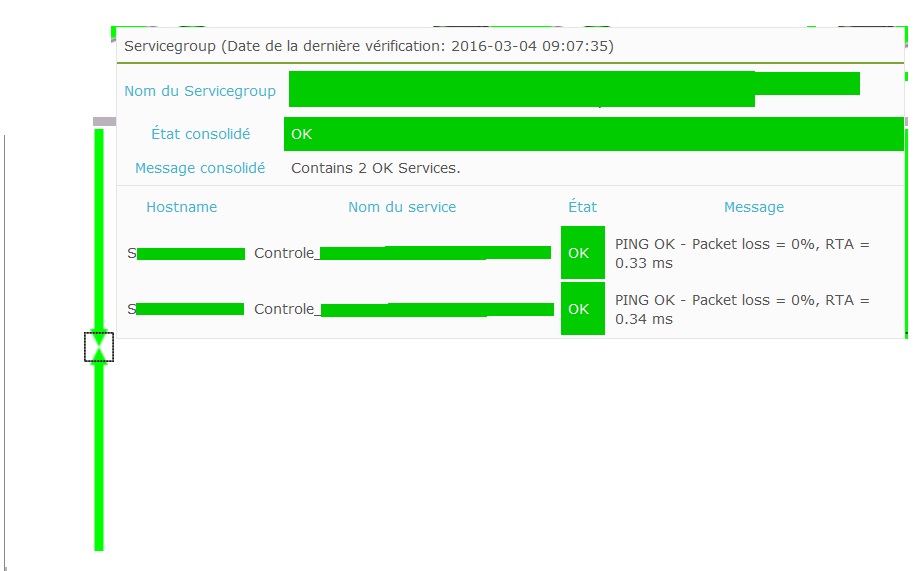

In the passage of the mouse, I obtain the image: Before.jpg.

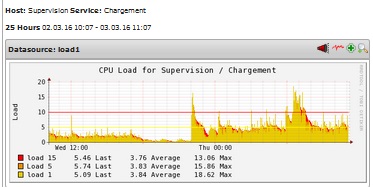

I would want not the services, but a graph ( After.jpg).

Best Regards

[tmcdonald]

It is still not clear what you are looking to do, and the images provided are very small. I do not recognize the bottom image. Can you please describe what you want, in detail, and provide larger screenshots?

[nozlaf]

if you set the line to depict a single host or service you will get a graph however you have selected a servicegroup so you are getting the summary for the group

[Athanor027]

Hello,

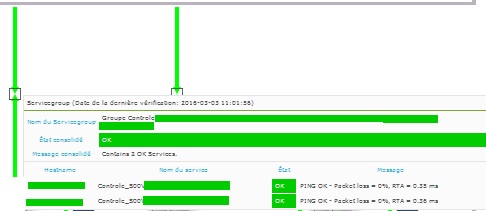

By default, on Nagvis, when we move the mouse on an icon (without clicking), we obtain the status of every dedicated service (see photo 1).

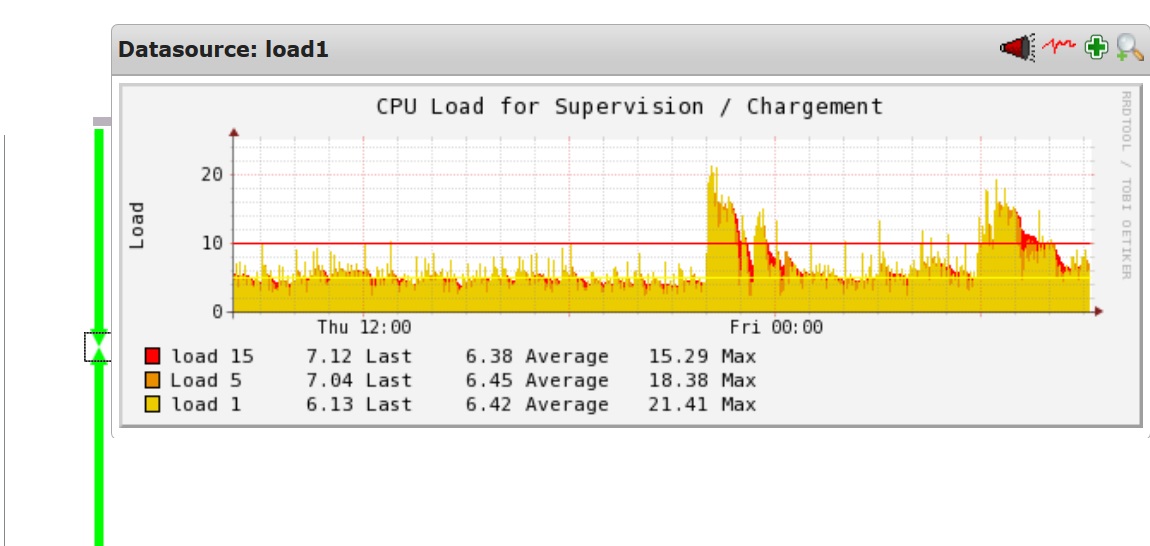

What I wish, it is not the status of the services (ping for example), but a graph ( pnp4nagios ) (see photo 2)

Best Regards

[Athanor027]

Hello,

The display is even if I select a single service, it posts the line of ping and not the ping graph.

Best Regards

[nozlaf]

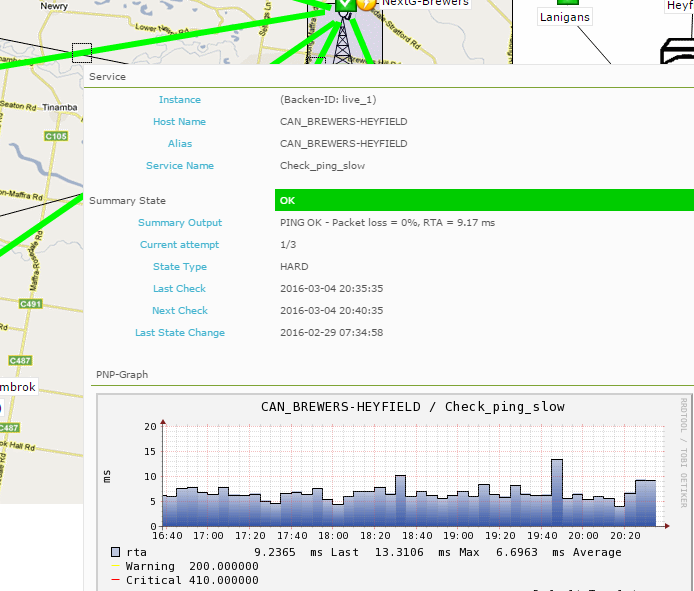

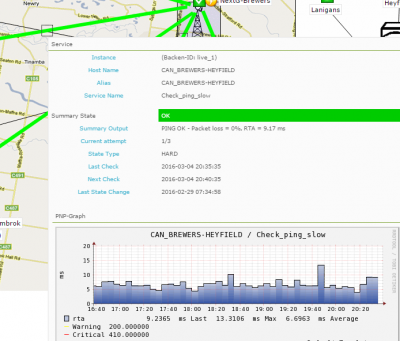

so to achieve this the hover_template on my system needs to be set to "default-pnp"

this is vary from system to system depending on how you have configured it etc..
because my nagvis is very old and has been upgraded many times I don't know if that's what the template is called by default or what it contains


but this is what I have in my template file


this is the contents of my /usr/local/nagvis/share/userfiles/templates/default-pnp.hover.html file

Code: Select all

<table class="hover_table">
        <tr><th colspan="2">[lang_obj_type]</th></tr>
        <tr><td class="label"><label>[lang_instance]</label></td><td>[obj_backend_instancename] (Backen-ID: [obj_backendid])</td></tr>
        <tr><td class="label"><label>[lang_name]</label></td><td>[obj_name]</td></tr>
        <tr><td class="label"><label>[lang_alias]</label></td><td>[obj_alias]</td></tr>

        <!-- BEGIN service -->
        <tr><td class="label"><label>[lang_service_description]</label></td><td>[service_description]</td></tr>
        <!-- END service -->

        <tr><td class="spacer" colspan="2"></td></tr>
        <tr><td class="label[obj_summary_state]"><label>[lang_summary_state]</label></td><td class="state[obj_summary_state]">[obj_summary_state][obj_summary_in_downtime][obj_sum$
        <tr><td class="label"><label>[lang_summary_output]</label></td><td>[obj_summary_output]</td></tr>

        <!-- BEGIN service -->
        <tr><td class="label"><label>[lang_current_attempt]</label></td><td>[obj_current_check_attempt]/[obj_max_check_attempts]</td></tr>
        <tr><td class="label"><label>[lang_state_type]</label></td><td>[obj_state_type]</td></tr>
        <tr><td class="label"><label>[lang_last_check]</label></td><td>[obj_last_check]</td></tr>
        <tr><td class="label"><label>[lang_next_check]</label></td><td>[obj_next_check]</td></tr>
        <tr><td class="label"><label>[lang_last_state_change]</label></td><td>[obj_last_state_change]</td></tr>
        <!-- END service -->

        <tr><td class="spacer" colspan="2"></td></tr>
        <tr><td colspan="2">
                <table>
                        <tr><th><label>PNP-Graph</label></th>
                        <tr></td><td><img src=/pnp4nagios/image?host=[pnp_hostname]&srv=[pnp_service_description]&display=image&view=0></td></tr>
                </table>
        </td></tr>
</table>

[Athanor027]

Hello,

I modified the file.
It works, thank you very much.

Best Regards,

Xavier

[rkennedy]

Awesome @nozlaf!

@Athanor027 - are we good to mark this thread as resolved?
