Nagios Core - Map Legacy - Wrong Display

[gastonmd14]

Hi guys,

can you help me with this ??

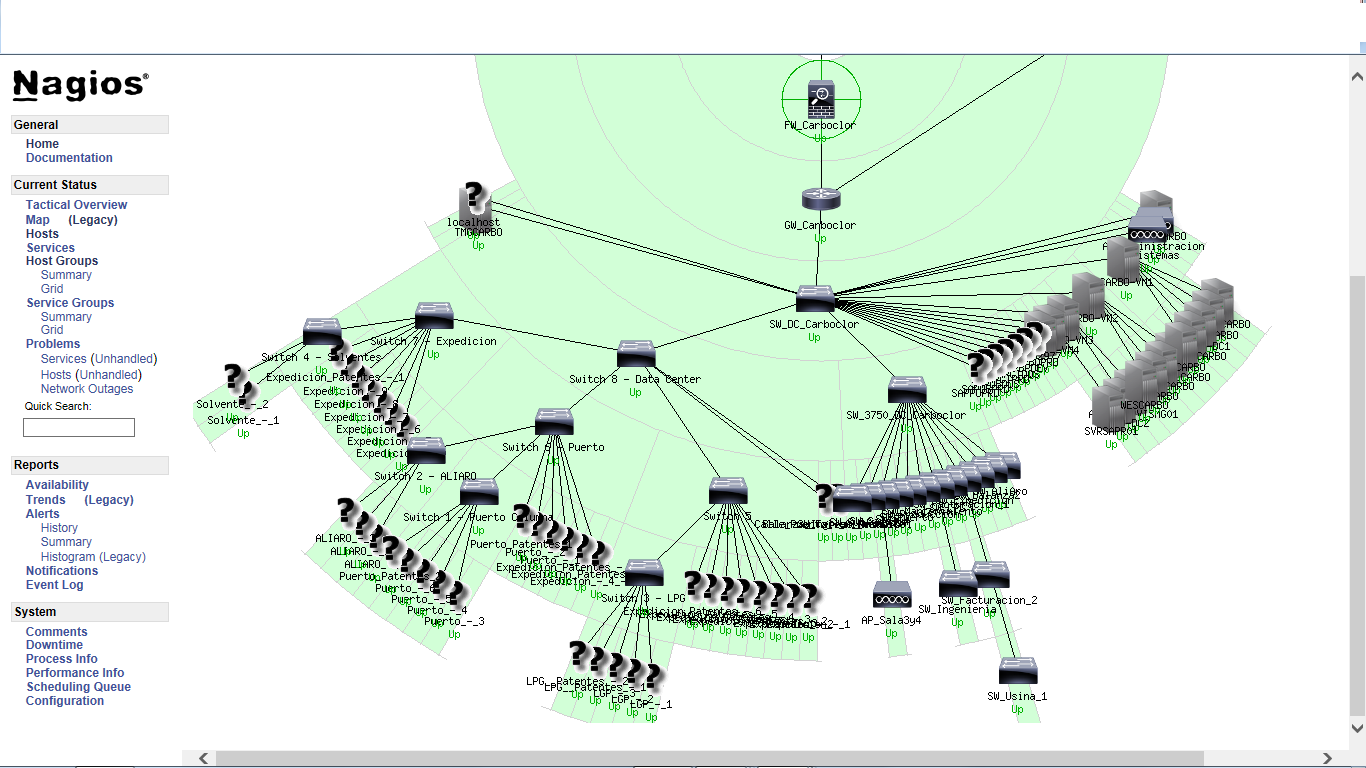

On my nagios core i see a worng display with all icon overlap.

I attach the file.

Regards.

[rkennedy]

I believe this is expected due to the sheer amount of services you have. You should be able to change your /usr/local/nagios/etc/cgi.cfg file, specifically the default_statusmap_layout= variable to a different number.

See this link for the options on what you can change it to - https://assets.nagios.com/downloads/nag ... map_layout

[gastonmd14]

Hi,

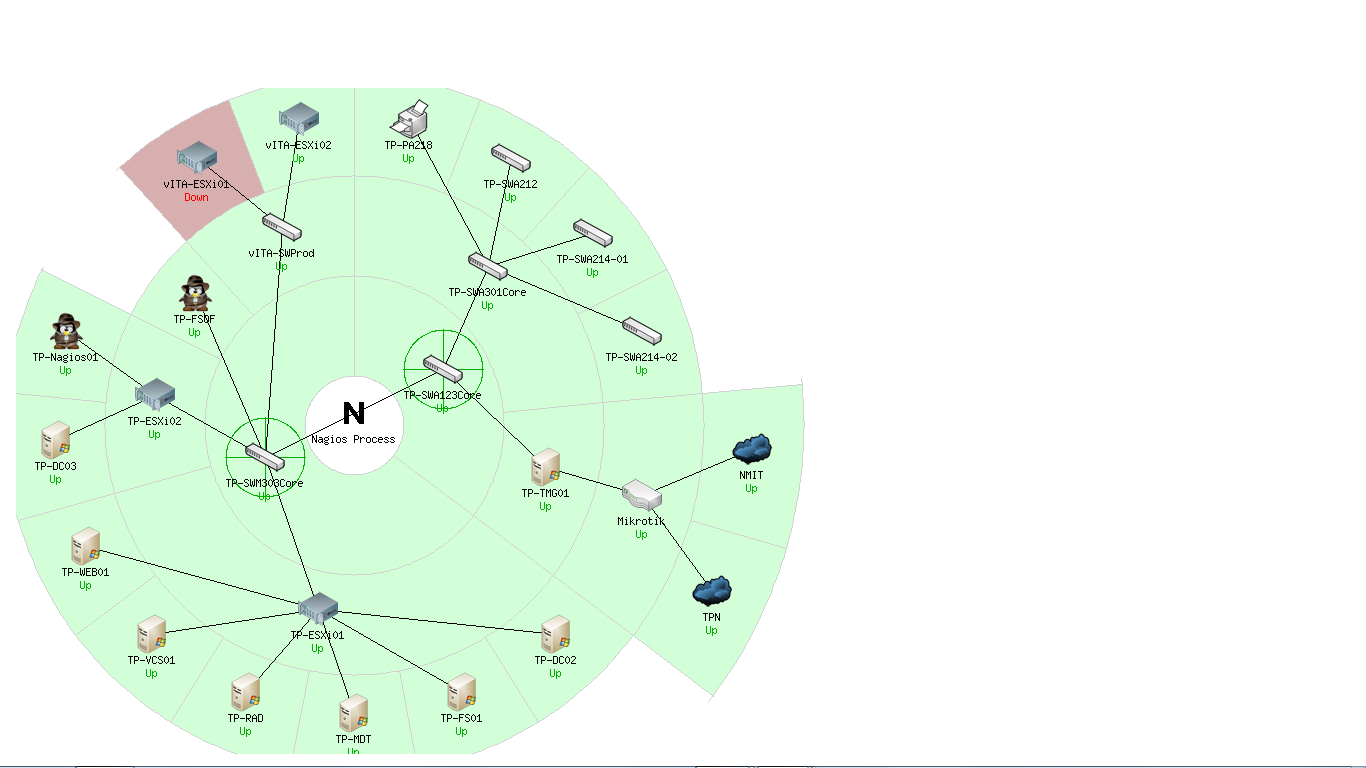

thanks for the information but i want to see like the attachment.

how i can do that ??

Can you help ??

Regards.

[mcapra]

This is described on the page @rkennedy linked:
https://assets.nagios.com/downloads/nag ... map_layout

The style you are looking for should be named "Circular (Marked Up)". Try default_statusmap_layout=5

As pointed out by @rkennedy, the map is going to be a bit squished due to the sheer number of parents/children in your setup.
