Nagios 4.3.4 with installed Nagvis 1.9.3 but not accessible

Post by mark.quilates »

Hi Guys,

Can I ask your help, I installed Nagvis 1.9.3 on my Nagios Core 4.3.4, but when I tried to access the nagvis web I got the error below. I've already installed Mk-livestatus and its working. Please see attached screenshot below for your reference. Thanks!
Attachments
NagiosError 10182017.png
NagiosError 10182017.png (11.02 KiB) Viewed 5135 times
Nagvis Error 10182017.png
mark.quilates
Posts: 21
Joined: Sat Feb 27, 2016 3:12 am

Re: Nagios 4.3.4 with installed Nagvis 1.9.3 but not accessi

Post by mark.quilates »

Hi Guys,

After editing config on /etc/httpd/conf.d. now I am able to access nagvis web, but it looks like still has a problem, since after logged in the account credentials it just looped on the login page. Please see screenshot below. Thanks!
Attachments
After logged in
After logged in
Upon logging in
Upon logging in
kyang

Re: Nagios 4.3.4 with installed Nagvis 1.9.3 but not accessi

Post by kyang »

I haven't tried Nagios Core with the latest version of Nagvis. I'll test it out and see what happens.

Can you show us what you edited in your /etc/httpd/conf.d?

Also, did you follow any documentation when installing this or you just did it? If that's clear.
mark.quilates
Posts: 21
Joined: Sat Feb 27, 2016 3:12 am

Re: Nagios 4.3.4 with installed Nagvis 1.9.3 but not accessi

Post by mark.quilates »

Hi,

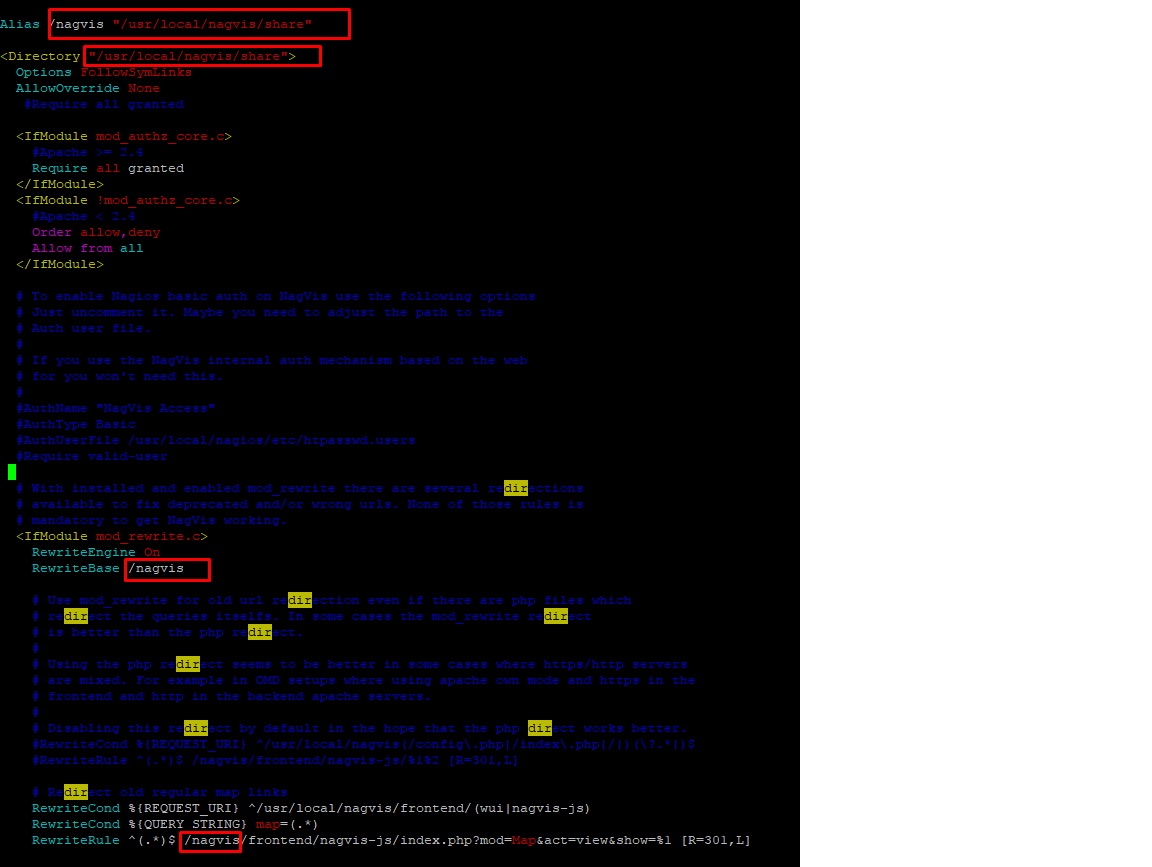

Here's the screenshot of I edited on nagvis.conf. Also just to give you an idea I got the problem during the installation of Nagvis the Graphviz are "Missing" , I tried to install using "yum install graphviz" but the error was 404 please see attache screenshot below. Thanks!
Attachments
Error during installation of graphviz
Error during installation of graphviz
highlighted red was the edited
highlighted red was the edited
mark.quilates
Posts: 21
Joined: Sat Feb 27, 2016 3:12 am

Re: Nagios 4.3.4 with installed Nagvis 1.9.3 but not accessi

Post by mark.quilates »

Hi,

Just to give an update, I am now already installed graphviz using this link wget http://204.178.9.49/pub/graphviz/develo ... l6.src.rpm. Also, I re-installed Ngvis 1.9.3 on my Nagios 4.3.4 in my CentOS 6.5 but still once I access the nagvis web and inputted the user account it just looped on the login page again. Please see attached screenshot during my installation of nagvis without error or missing. Thanks
Attachments
Nagvis ins 10192017.png
Nagvis ins2 10192017.png
mark.quilates
Posts: 21
Joined: Sat Feb 27, 2016 3:12 am

Re: Nagios 4.3.4 with installed Nagvis 1.9.3 but not accessi

Post by mark.quilates »

here's the continuation.
Attachments
nagvis3 10192017.jpg
nagvis4 10192017.jpg
kyang

Re: Nagios 4.3.4 with installed Nagvis 1.9.3 but not accessi

Post by kyang »

Can you show us the apache logs when you try to login?

Code: Select all

tail /var/log/httpd/error_log
When you logged in, did you do,
Username: admin
Password: admin

Does this work for you? (Enter your server ip address) --> or is this the screen you are talking about?

Code: Select all

<http://localhost/nagvis/config.php>
mark.quilates
Posts: 21
Joined: Sat Feb 27, 2016 3:12 am

Re: Nagios 4.3.4 with installed Nagvis 1.9.3 but not accessi

Post by mark.quilates »

Hi Kyang,

Thanks for usual assistance on me, I just want to inform you that I just re-installed my Nagios and Nagvis on CentOS 6.5 64bit and it works fine. I guess there's still an issue on CentOS 7.

Thank you very much.
kyang

Re: Nagios 4.3.4 with installed Nagvis 1.9.3 but not accessi

Post by kyang »

Glad you were able to solve this! We will be closing this topic as resolved!

If you have more questions, feel free to create another thread!

Thank you for using the Nagios Support Forum!
