Nagios Core - Using Grafana With PNP4Nagios

Nagios Core - Using Grafana With PNP4Nagios

This documentation explains how to install and configure Grafana to generate performance graphs with an existing PNP4Nagios solution. This guide relies on having installed and configured PNP4Nagios using the following documentation:

Nagios Core - Performance Graphs Using PNP4Nagios

If you don't have PNP4Nagios installed and want to use Grafana then you might be interested in this alternate solution:

Nagios Core - Performance Graphs Using InfluxDB + Nagflux + Grafana + Histou


IMPORTANT

DO NOT follow this guide if you are using Nagios XI. This guide is intended for Nagios Core only.



This guide is broken up into several sections and covers different Linux distributions and operating systems (OS). If your Linux Distribution or operating system is not included in this guide then please contact us to see if we can get it added. Some distributions may be missing as we don't have access to a test environment that allows us to develop the documentation.

Note: This guide is based on Nagios Core being installed using the following KB article:

Documentation - Installing Nagios Core From Source



Please select your OS:





CentOS | RHEL | Oracle Linux

This documentation works on CentOS / RHEL / Oracle Linux version 6+. We were unable to get this solution working on versions prior to 6.x.

Install Grafana

Please follow the Grafana installation documentation:

http://docs.grafana.org/installation/rpm/



Once installed, execute the following commands to start the service and ensure it is enabled to start on boot:

===== CentOS | RHEL | Oracle Linux 6.x =====

chkconfig --add grafana-server
service grafana-server start



===== CentOS | RHEL | Oracle Linux 7.x =====

systemctl enable grafana-server.service
systemctl start grafana-server.service



You need to allow port 3000 inbound traffic on the local firewall so you can reach the Grafana web interface:

===== CentOS | RHEL | Oracle Linux 6.x =====

iptables -I INPUT -p tcp --destination-port 3000 -j ACCEPT
service iptables save
ip6tables -I INPUT -p tcp --destination-port 3000 -j ACCEPT
service ip6tables save



===== CentOS | RHEL | Oracle Linux 7.x =====

firewall-cmd --zone=public --add-port=3000/tcp
firewall-cmd --zone=public --add-port=3000/tcp --permanent



Install PNP Components

Execute these commands to install the PNP4Nagios components for Grafana:

grafana-cli plugins install sni-pnp-datasource
cd /usr/local/pnp4nagios/share/application/controllers/
wget -O api.php "https://github.com/lingej/pnp-metrics-api/raw/master/application/controller/api.php"



You also need to restart the grafana-server service:

===== CentOS | RHEL | Oracle Linux 6.x =====

service grafana-server restart



===== CentOS | RHEL | Oracle Linux 7.x =====

systemctl restart grafana-server.service



Grant localhost Permission To PNP4Nagios Site

Grafana will be making calls to the PNP API and will require permission. This guide focusses on granting access to the local host however with "CentOS | RHEL | Oracle Linux 6.x" a username/password is required.

===== CentOS | RHEL | Oracle Linux 6.x =====

The following command will add the user grafana with the password ANAFARG  to htpasswd.users:

htpasswd -b /usr/local/nagios/etc/htpasswd.users grafana ANAFARG



Please proceed to the Grafana Configuration section for the next step.



===== CentOS | RHEL | Oracle Linux 7.x =====

The method used here is to allow the 127.0.0.1 & ::1 addresses of the Nagios server access. This is defined by adding the following line to pnp4nagios.cfg:

Require ip 127.0.0.1 ::1



The following command will add that line to pnp4nagios.cfg:

sed -i '/Require valid-user/a\        Require ip 127.0.0.1 ::1' /etc/httpd/conf.d/pnp4nagios.conf



The Apache httpd service needs to be restarted for this change to take affect:

systemctl restart httpd.service



Please proceed to the Grafana Configuration section for the next step.





Ubuntu

This documentation works on Ubuntu version 16+. We were unable to get this solution working on versions prior to 16.x.


Install Grafana

Please follow the Grafana installation documentation:

http://docs.grafana.org/installation/debian/



Once installed, execute the following commands to start the service and ensure it is enabled to start on boot:

sudo systemctl enable grafana-server.service
sudo systemctl start grafana-server.service



You need to allow port 3000 inbound traffic on the local firewall so you can reach the Grafana web interface.

sudo ufw allow 3000/tcp
sudo ufw reload



Install PNP Components

Execute these commands to install the PNP4 components for Grafana:

sudo grafana-cli plugins install sni-pnp-datasource
sudo systemctl restart grafana-server.service
cd /usr/local/pnp4nagios/share/application/controllers/
sudo wget -O api.php "https://github.com/lingej/pnp-metrics-api/raw/master/application/controller/api.php"



Grant localhost Permission To PNP4Nagios Site

Grafana will be making calls to the PNP API and will require permission. The method used here is to allow the 127.0.0.1 & ::1 addresses of the Nagios server access. This is defined by adding the following line to pnp4nagios.cfg:

Require ip 127.0.0.1 ::1



The following command will add that line to pnp4nagios.cfg:

sudo sh -c "sed -i '/Require valid-user/a\        Require ip 127.0.0.1 ::1' /etc/apache2/sites-enabled/pnp4nagios.conf"



The Apache apache2 service needs to be restarted for this change to take affect:

sudo systemctl restart apache2.service



Please proceed to the Grafana Configuration section for the next step.





SUSE SLES | openSUSE Leap

This documentation was tested on SUSE SLES 12.2+ and openSUSE Leap 42.2+.

Install Grafana

Please follow the Grafana installation documentation:

http://docs.grafana.org/installation/rpm/



Once installed, execute the following commands to start the service and ensure it is enabled to start on boot:

sudo systemctl enable grafana-server.service
sudo systemctl start grafana-server.service



You need to allow port 3000 inbound traffic on the local firewall so you can reach the Grafana web interface:

===== SUSE SLES 12.x =====

sudo /usr/sbin/SuSEfirewall2 open EXT TCP 3000
sudo systemctl restart SuSEfirewall2


===== openSUSE Leap 42.x =====

The firewall service is not enabled by defauly on openSUSE.



Install PNP Components

Execute these commands to install the PNP4 components for Grafana:

sudo grafana-cli plugins install sni-pnp-datasource
sudo systemctl restart grafana-server.service
cd /usr/local/pnp4nagios/share/application/controllers/
sudo wget -O api.php "https://github.com/lingej/pnp-metrics-api/raw/master/application/controller/api.php"



Grant localhost Permission To PNP4Nagios Site

Grafana will be making calls to the PNP API and will require permission. The method used here is to allow the 127.0.0.1 & ::1 addresses of the Nagios server access. This is defined by adding the following line to pnp4nagios.cfg:

Require ip 127.0.0.1 ::1



The following command will add that line to pnp4nagios.cfg:

sudo sh -c "sed -i '/Require valid-user/a\        Require ip 127.0.0.1 ::1' /etc/apache2/vhosts.d/pnp4nagios.conf"



The Apache apache2 service needs to be restarted for this change to take affect:

sudo systemctl restart apache2.service



Please proceed to the Grafana Configuration section for the next step.





Debian | Raspbian

This documentation works on Debian / Raspbian version 8+. We were unable to get this solution working on versions prior to 8.x.

All steps on Debian require to run as root. To become root simply run:

Debian:

su



Raspbian:

sudo -i



All commands from this point onwards will be as root.



Install Grafana

Please follow the Grafana installation documentation:

http://docs.grafana.org/installation/debian/



Once installed, execute the following commands to start the service and ensure it is enabled to start on boot:

systemctl enable grafana-server.service
systemctl start grafana-server.service



You need to allow port 3000 inbound traffic on the local firewall so you can reach the Grafana web interface.

iptables -I INPUT -p tcp --destination-port 3000 -j ACCEPT



Install PNP Components

Execute these commands to install the PNP4 components for Grafana:

grafana-cli plugins install sni-pnp-datasource
systemctl restart grafana-server.service
cd /usr/local/pnp4nagios/share/application/controllers/
wget -O api.php "https://github.com/lingej/pnp-metrics-api/raw/master/application/controller/api.php"



Grant localhost Permission To PNP4Nagios Site

Grafana will be making calls to the PNP API and will require permission. The method used here is to allow the 127.0.0.1 & ::1 addresses of the Nagios server access. This is defined by adding the following line to pnp4nagios.cfg:

Require ip 127.0.0.1 ::1



The following command will add that line to pnp4nagios.cfg:

sed -i '/Require valid-user/a\        Require ip 127.0.0.1 ::1' /etc/apache2/sites-enabled/pnp4nagios.conf



The Apache apache2 service needs to be restarted for this change to take affect:

systemctl restart apache2.service



Please proceed to the Grafana Configuration section for the next step.





Fedora

Install Grafana

Please follow the Grafana installation documentation:

http://docs.grafana.org/installation/rpm/



Once installed, execute the following commands to start the service and ensure it is enabled to start on boot:

systemctl enable grafana-server.service
systemctl start grafana-server.service



You need to allow port 3000 inbound traffic on the local firewall so you can reach the Grafana web interface:

firewall-cmd --zone=FedoraServer --add-port=3000/tcp
firewall-cmd --zone=FedoraServer --add-port=3000/tcp --permanent



Install PNP Components

Execute these commands to install the PNP4 components for Grafana:

grafana-cli plugins install sni-pnp-datasource
systemctl restart grafana-server.service
cd /usr/local/pnp4nagios/share/application/controllers/
wget -O api.php "https://github.com/lingej/pnp-metrics-api/raw/master/application/controller/api.php"



Grant localhost Permission To PNP4Nagios Site

Grafana will be making calls to the PNP API and will require permission. The method used here is to allow the 127.0.0.1 & ::1 addresses of the Nagios server access. This is defined by adding the following line to pnp4nagios.cfg:

Require ip 127.0.0.1 ::1



The following command will add that line to pnp4nagios.cfg:

sed -i '/Require valid-user/a\        Require ip 127.0.0.1 ::1' /etc/httpd/conf.d/pnp4nagios.conf



The Apache httpd service needs to be restarted for this change to take affect:

systemctl restart httpd.service



Please proceed to the Grafana Configuration section for the next step.





Arch Linux

Install Grafana

Please follow these instructions to install Grafana:

pacman --noconfirm -Syyu
pacman --noconfirm -S grafana



Once installed, execute the following commands to start the service and ensure it is enabled to start on boot:

systemctl enable grafana.service
systemctl start grafana.service



Arch Linux does not have a firewall enabled in a fresh installation. Please refer to the Arch Linux documentation on allowing TCP port 3000 inbound.



Install PNP Components

Execute these commands to install the PNP4 components for Grafana:

grafana-cli plugins install sni-pnp-datasource
systemctl restart grafana.service
cd /usr/local/pnp4nagios/share/application/controllers/
wget -O api.php "https://github.com/lingej/pnp-metrics-api/raw/master/application/controller/api.php"



Grant localhost Permission To PNP4Nagios Site

Grafana will be making calls to the PNP API and will require permission. The method used here is to allow the 127.0.0.1 & ::1 addresses of the Nagios server access. This is defined by adding the following line to pnp4nagios.cfg:

Require ip 127.0.0.1 ::1



The following command will add that line to pnp4nagios.cfg:

sed -i '/Require valid-user/a\        Require ip 127.0.0.1 ::1' /etc/httpd/conf/extra/pnp4nagios.conf



The Apache httpd service needs to be restarted for this change to take affect:

systemctl restart httpd.service



Please proceed to the Grafana Configuration section for the next step.





Gentoo

Install Grafana

Please follow these instructions to install Grafana:

emerge --sync
echo ">=www-apps/grafana-bin-5.0.0 **" >> /etc/portage/package.accept_keywords
emerge --noreplace www-apps/grafana-bin



Once installed, execute the following commands to start the service and ensure it is enabled to start on boot:

rc-update add grafana default
rc-service grafana start



Gentoo does not have a firewall enabled in a fresh installation. Please refer to the Gentoo documentation on allowing TCP port 3000 inbound.



Install PNP Components

Execute these commands to install the PNP4 components for Grafana:

grafana-cli plugins install sni-pnp-datasource
ln -s /var/lib/grafana/plugins/sni-pnp-datasource /usr/share/grafana/data/plugins
rc-service grafana restart
cd /usr/local/pnp4nagios/share/application/controllers/
wget -O api.php "https://github.com/lingej/pnp-metrics-api/raw/master/application/controller/api.php"



Grant localhost Permission To PNP4Nagios Site

Grafana will be making calls to the PNP API and will require permission. The method used here is to allow the 127.0.0.1 & ::1 addresses of the Nagios server access. This is defined by adding the following line to pnp4nagios.cfg:

Require ip 127.0.0.1 ::1



The following command will add that line to pnp4nagios.cfg:

sed -i '/Require valid-user/a\        Require ip 127.0.0.1 ::1' /etc/apache2/vhosts.d/pnp4nagios.conf



The Apache apache2 service needs to be restarted for this change to take affect:

rc-service apache2 restart



Please proceed to the Grafana Configuration section for the next step.





FreeBSD

Install Grafana

Please follow these instructions to install Grafana:

pkg install -y grafana4



Once installed, execute the following commands to start the service and ensure it is enabled to start on boot:

echo 'grafana_enable="YES"' >> /etc/rc.conf
service grafana onestart



FreeBSD does not have a firewall enabled in a fresh installation. Please refer to the FreeBSD documentation on allowing TCP port 3000 inbound.



Install PNP Components

Execute these commands to install the PNP4 components for Grafana:

grafana-cli plugins install sni-pnp-datasource
service grafana onerestart
cd /usr/local/pnp4nagios/share/application/controllers/
wget -O api.php "https://github.com/lingej/pnp-metrics-api/raw/master/application/controller/api.php"



Grant localhost Permission To PNP4Nagios Site

Grafana will be making calls to the PNP API and will require permission. The method used here is to allow the 127.0.0.1 & ::1 addresses of the Nagios server access. This is defined by adding the following line to pnp4nagios.cfg:

Require ip 127.0.0.1 ::1



The following command will add that line to pnp4nagios.cfg:

perl -ni.bak -le 'print; print "        Require ip 127.0.0.1 ::1" if /Require valid-user/' /usr/local/etc/apache24/Includes/pnp4nagios.conf



The Apache apache2 service needs to be restarted for this change to take affect:

service apache24 onerestart



Please proceed to the Grafana Configuration section for the next step.








Grafana Configuration

Grafana needs to be configured to use the PNP4Nagios API. Open your web browser to the following URL:

http://nagios_server:3000

Replace nagios_server with the DNS record or ip address of your Nagios Core server.

You will be prompted with a login page, the default username is admin and the password is admin.

You will be presented with the Home Dashboard and you'll see an Add data source icon, click it to continue.





You will need to populate the following information:

  • Name: PNP
  • Type: PNP
  • HTTP
    • URL: http://localhost/pnp4nagios
    • Access: proxy
  • Auth: Leave settings as default (nothing selected)
    • IF you are using CentOS | RHEL | Oracle Linux 6.x
      • Tick the box Basic Auth
      • Under Basic Auth Details populate the username and password as per the steps earlier (grafana / ANAFARG)





Once populated click the Save & Test button. When the screen refreshes, if all settings are correct you will be notified that the Data source is working.

The next step is to create a dashboard & graph.





Create Dashboard + Graph

Now that Grafana has been configured you need to create a dashboard and then add a graph to the dashboard.

On the left navigation men hover over the + icon and select Create > Dashboard.

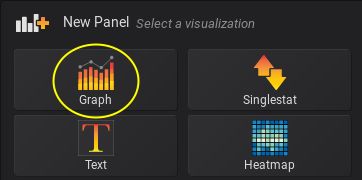

This creates an empty dashboard that needs panels added to it, this example will add a Graph panel.







An empty graph is added to the dashboard, to add data points to the graph click the Panel Title and select Edit.







This opens the editor interface for the panel. At the bottom you can see a list of tabs and the Metrics tab is selected by default. On this tab you will be able to add metric(s) to the graph using queries. This example is going to show you how create a graph for the localhost object that has the Current Load service. This is being used because the Current Load service has three separate data sources that need to be added to the graph.

  • Metrics tab
    • Next to Host click select host and select localhost
    • Next to Service click select service and select Current Load
    • Next to Label click select performance label and select load1
    • You will now see this metric has been added to the graph
    • Underneath this query click the Add Query button
    • Repeat the steps above to add the load5 and load15 metrics
  • General Tab
    • Give it the title localhost Current Load







After making those choices click the Back to dashboard button at the top right of the screen. You will exit the edit mode and the graph will now appear with the metrics you just added.

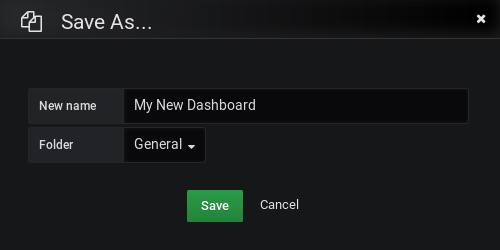

Click the Save icon in the top right corner of the screen and provide a name when prompted.







This completes the steps required for using Grafana With PNP4Nagios on Nagios Core.





Additional Reading

To get the most out of Grafana and PNP4Nagios you should check out the documentation:

http://docs.grafana.org/guides/getting_started/

https://github.com/sni/grafana-pnp-datasource





Final Thoughts

For any support related questions please visit the Nagios Support Forums at:

http://support.nagios.com/forum/

0 (0)
Article Rating (No Votes)
Rate this article
  • Icon PDFExport to PDF
  • Icon MS-WordExport to MS Word
Attachments Attachments
There are no attachments for this article.
Related Articles RSS Feed
Nagios Core 4 - Status Maps
Viewed 1709 times since Wed, Jul 19, 2017
Nagios Core - Status Map Customization (Legacy)
Viewed 7115 times since Sun, Jul 23, 2017
Nagios Core - Performance Graphs Using PNP4Nagios
Viewed 4776 times since Mon, Feb 26, 2018
Nagios Core - Graphing Performance Info With MRTG
Viewed 3456 times since Mon, Feb 1, 2016
Nagios Core - Status Map Customization
Viewed 3329 times since Tue, Jul 25, 2017
Nagios Core - Performance Graphs Using InfluxDB + Nagflux + Grafana + Histou
Viewed 7466 times since Sun, Mar 4, 2018
Nagios Core - Performance Data
Viewed 3011 times since Mon, Feb 1, 2016
Nagios Core - Custom CGI Headers and Footers
Viewed 2664 times since Mon, Feb 1, 2016
